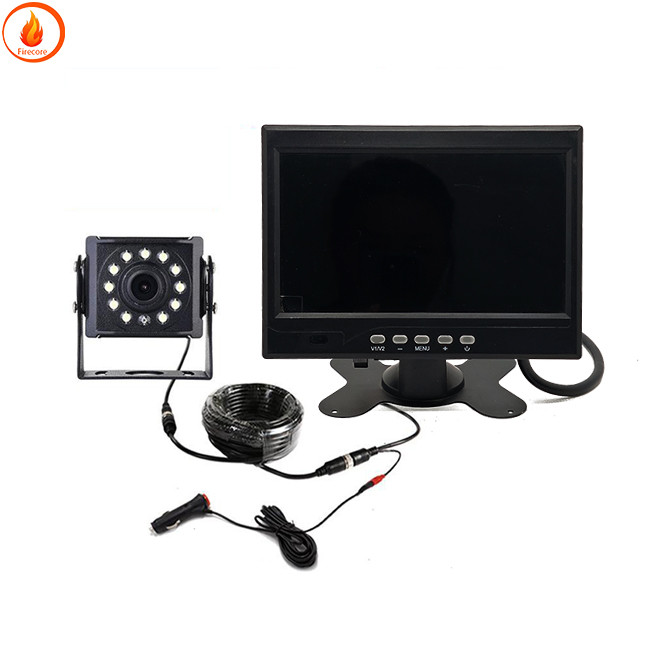

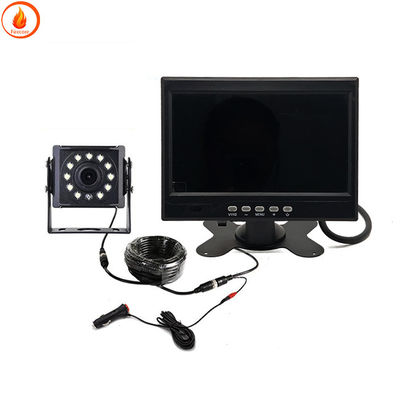

Rückwärtskamera für Fahrzeuge 36-Volt-Videoüberwachungskamera für Lkw

Fahrzeugkamera Überwachungssystem Videoüberwachung LKW KI Alarm High-Definition Rückwärtskamera

Vertrieb von Fahrzeugkameras:
Derzeit werden die auf dem Fahrzeug montierten Kameras in fünf Kategorien eingeteilt:Front-View-Kameras Umgebung-View-Kameras Rückansicht Kameras Seitenansicht Kameras und eingebaute Kameras

Frontsichtkamera:  mainly installed on the front windshield to achieve visual perception and recognition functions during driving   It can be divided into front view main camera  front view narrow angle camera   and front view wide angle camera according to their functions
Hauptkamera vorne:  This camera is used as the main camera in the ADAS system of L2   The field of view angles are generally 30 °   50 °  60 °   100 °   and 120 °  and the detection distance is generally 150 - 170 meters    The camera output format is RCCB or RCCC

Vorwärts gerichtete Weitwinkelkamera:  The main function of this camera is to recognize objects that are close in distance   mainly used in urban road conditions   low - speed driving and other scenes   Its field of view angle is between 120 °  - 150 °    and the detection distance is about 50 meters  After the large - scale installation of the 8MP lens in subsequent vehicles   this camera is not needed

Frontansicht Schmalwinkelkamera:  The main function of this camera is to recognize targets such as traffic lights and pedestrians   Generally   narrow angle lenses are used  and lenses around 30 - 40 ° can be selected   And the pixels of this lens are generally the same as those of the front facing main camera  The camera adopts a narrow angle  has higher pixel density and farther detection distance   and can generally detect up to 250 meters or even longer distances

Nach der Installation einer 8MP Kamera kann die FOV der vorderen Hauptkamera 120 ° erreichen, die möglicherweise nicht mehr benötigt wird. Die Detektionsdistanz beträgt etwa 60 Meter

Umgebungskamera:  mainly installed around the vehicle body   usually using 4 - 8 cameras   which can be divided into forward facing fisheye camera   left facing fisheye camera    right facing fisheye camera   and rear facing fisheye camera   Used for displaying panoramic panoramic view function   as well as visual perception and object detection integrating parking function    The commonly used color matrix is RGGB  as there is a need for color restoration

Wir sind ein professioneller Hersteller von Forschung und Entwicklung Produktion und Fahrzeugüberwachung

Auto-Videorekorder, Auto-Kamera, Auto-USB-Kamera, Auto-Display, USB-Kamera

Bitte kontaktieren Sie uns per Email: firecore1688@163.com
